Mobile360 D700

搭载1080P对外和对内的双摄像头

4G.Wi-Fi和GPS无线连接

可移除式SD卡最高支持200GB

行车记录仪SDK支持云端整合

安卓智能手机端应用程序

概要数据资料下载订购

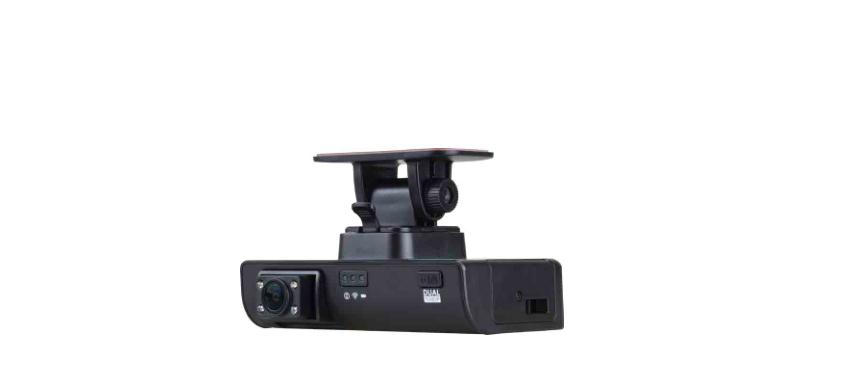

威盛Mobile360 D700双镜头行车记录仪


威盛Mobile360 D700车载双向监控仪可提高驾驶员安全性和车队运营效率。这款强大的高性能双向摄像头设备将先进AI驱动的安全功能与4G LTE连接和AWS 云集成相结合,可检测前方道路的潜在危险和危险的驾驶员行为,非常适合苛刻的商业级车队管理应用,从出租车、叫车服务和最后一公里配送服务,到长途货运和执法部门用车。



AI驱动的事故预防

威盛Mobile360 D700中由AI驱动的LDW(车道偏离警告)和FCW(前撞警告)功能可防止事故发生并降低保险成本。当它们检测到前方道路上的潜在危险时,该设备会提醒您的驾驶员及时采取纠正措施,并可以记录严重事件的视频片段以便进行跟踪和分析。


AI驱动的驾驶员福利

威盛Mobile360 D700中具有AI驱动的DMS(驾驶员监控技术),可提高驾驶员的安全性和舒适度。 该设备具有检测分心驾驶、睡意,智能手机使用和吸烟等行为的能力,且可提醒驾驶员存在危险或违法行为,并为您提供所需的数据以便识别可能影响其健康和绩效的问题。


加速AWS云集成

使用威盛 Mobile360 D700 SDK加速AWS云应用程序和服务的集成。 充分利用威盛车队云管理门户网站的30天免费试用版,包括使用Amazon KVS进行的50小时实时流媒体播放,体验实时车辆跟踪、碰撞视频警报以及其他一系列车队管理的功能 。



威盛 Mobile360 D700 车载双向监控仪的优势

●通过更有效的路线规划、远程车辆监控和资产利用来提高运营效率

●通过实时跟踪、AI驱动的LDW和FCW事故预防功能以及消除虚假索赔,降低车辆维护、维修和保险成本

● 通过AI驱动的驾驶员行为监控来提高驾驶员安全性和幸福感

● 灵活的自定义选项充分满足您的特定部署需求


全高清双向摄像头

威盛Mobile360 D700车载双向监控仪配备双1080p前后高清摄像头,可同时捕获和处理驾驶员和当前道路状况的高清视频画面。 素材可以使用支持高达512GB容量的Micro SD卡本地存储,并可以通过Wi-Fi上传到云端。 可设置自定义的警报,以便使用4G无线将关键事件的实时视频上传到云。


丰富的 CAN总线远程通信数据

借助其CAN总线支持,威盛Mobile360 D700车载双向监控仪可以收集丰富的车辆使用情况数据,例如速度、距离空闲时间和油耗,可以通过对这些数据的分析,以确定优化车队效率和安全性的机会。



针对AWS云部署进行优化

威盛Mobile360 D700已通过AWS IoT核心认证,并已通过AWS动态视频流认证。 对KVS的支持意味着您可以从无服务器视频解决方案中受益,该解决方案具有自动时间索引、加密、保留和访问策略,实时和按需回放以及与AWS ML / AI服务的预集成。 也提供Android智能手机和苹果手机的参考应用程序。




点击此处下载Mobile360 D700数据資料PDF版,或浏览以下信息:

产品名称Mobile360 D700
处理器800MHz ARM Cortex-A53 dual-core SoC
系统内存512MB DDR3L DRAM
存储

256MB SPI Flash Memory

1 Micro SD Card slot

无线连接器

4G LTE module with antenna

Wi-Fi 802.11b/g/n/ac + BT 4.2

GPS receiver

摄像机&视频

Sony iMX307 CMOS Sensor: 1080p

2 1920x1080p @ 29fps

FOV: D=116°, H=100°, V=56°

Adjust max angle: horizontal left=10°, right=10°, vertical down=30°

H.264 encode and decode

传感器

4 IR LEDs controlled by Light sensor

3-Axis sensor

前面板I/O

1 Front camera

1 Light sensor

后面板I/O

1 Rear camera

4 IR LED lights

3 LEDs for power, Wi-Fi and recording status

1 Short record/Two-way call button

左面板I/O1 Speaker
右面板I/O

1 Micro USB 2.0 port (for debugging)

1 Micro SD Card slot (512GB max)

1 Micro SIM Card slot

1 12-pin power connector for 6 GPIO (5 GPI, 1 GPO), CAN bus, ACC, power

底部面板 I/O1 Mic
电源9~36V DC-in
软件Device SDK including Android / iOS smartphone reference apps
云计算认证

AWS IoT Core Qualified and Kinesis Video Streams Qualified

Microsoft IoT Plug and Play Certified

操作系统Linux Kernel 4.1.0
操作温度-20°C ~ 70°C
物理结构PC chassis housing
尺寸124.52mm(W) x 41.25mm(H) x 95.60mm(D) (4.90" x 1.62" x 3.76")
重量0.322kg (0.71lbs)
符合标准CE, FCC, BSMI, TELEC, NCC, CTA


产品编号 系统芯片频率

产品介绍

M360-D700-3D08A0

(For JP region only)

ARM Cortex-A53 dual-core SoC

@ 800MHz

Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,

512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights,

Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card

slot, 12-pin power connector for 6 GPIO, CAN bus & power

M360-D700-4D08B0

(For US region only)

ARM Cortex-A53 dual-core SoC

@ 800MHz

Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,

512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights,

Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card

slot, 12-pin power connector for 6 GPIO, CAN bus & power

M360-D700-5D08A0

(For APAC region only)

ARM Cortex-A53 dual-core SoC

@ 800MHz

Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,

512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights,

Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card

slot, 12-pin power connector for 6 GPIO, CAN bus & power

M360-D700-6D08A0

(For EU region only)

ARM Cortex-A53 dual-core SoC

@ 800MHz

Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,

512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights,

Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card

slot, 12-pin power connector for 6 GPIO, CAN bus & power

M360-D700-7D08A0

(For CN region only)

ARM Cortex-A53 dual-core SoC

@ 800MHz

Dual 1080p AI dash cam with 800MHz ARM Cortex-A53 dual-core SoC,

512MB DDR3L DRAM, 256MB SPI Flash Memory, Dual 1080p cameras, 4 IR LED lights,

Micro USB 2.0 port, Mic, speaker, 4G, Wi-Fi, BT 4.2, GPS, Micro SIM card slot, Micro SD card

slot, 12-pin power connector for 6 GPIO, CAN bus & power


Items
Mobile360 D700 system
32GB Micro SD card
12V/3A DC power adaptor

12-pin power connector to power On/Off

switch, 9~36V DC-in Jack, 12-pin CAN bus

& GPIO connector

12-pin power connector to OBD II

Connector and ACC to bullet plug cable

ACC bullet plug to Standard, Micro,

Low-Profile and Mini blade fuse holder

cable and fuses

Suction cup and adhesive tape mounting

bracket options

Allen wrench
