威盛VAB-820可选搭载图像内存性能升级的1.0GHz NXP i.MX 6QuadPlus Cortex-A9 ARM系统芯片,或1.0GHz NXP i.MX 6Quad Cortex-A9系统芯片,融合了高性能及低功耗,满足工业、能源管理及车载应用的高端需求。

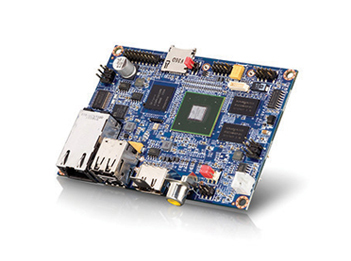

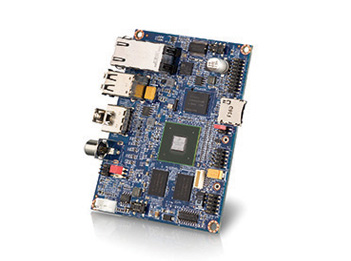

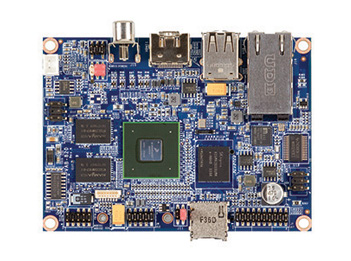

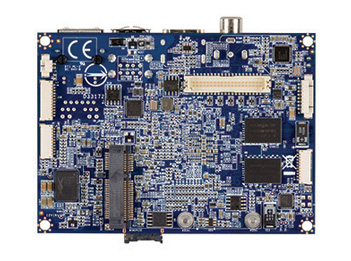

威盛VAB-820主板基于Pico-ITX板型,尺寸仅10cm x 7.2cm,拥有丰富的I/O接口及连接性能。
威盛VAB-820 BSP软件工具包提供可选Android 6.0 (NXP i. MX 6QuadPlus系统芯片 & NXP i.MX 6Quad系统芯片),以及包含多个应用程序界面的威盛Smart ETK嵌入式套件,其中包括防止系统崩溃的Watchdog定时器(WDT)、GPIO界面、COM界面、RTC自动电源开关及1个例程应用。
威盛VAB-820 Linux BSP软件工具包包含了修改与使用说明,用来编写一个系统镜像文件,此镜像档包含NXP i.MX 6QuadPlus 及NXP i.MX 6QuadPlus系统芯片的kernel (4.1.15)和引导程序原始码。其他效能包括1个Tool Chain,帮助调整核心,管理板载排针、GPIO界面、I2C界面及其他硬件特性。
同时,威盛还提供整套软件客制化服务,帮助客户加快上市时间,降低开发成本。

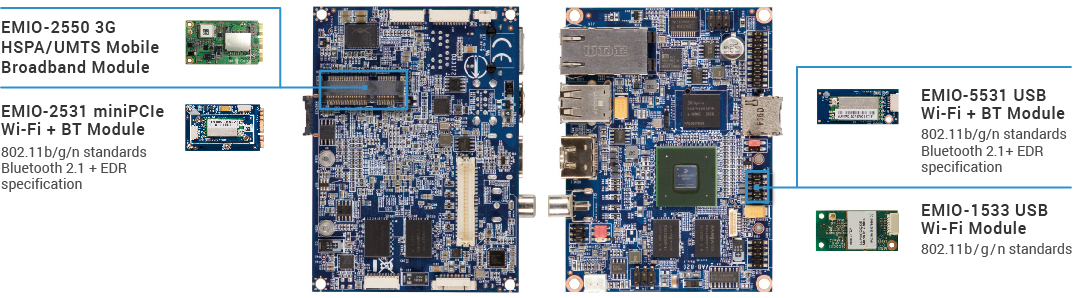

增强VAB-820的功能可集成可选的高速无线宽带扩展卡或模块。
VAB-820主板拥有强大的3D图形及高清视频性能,以及灵活的I/O连接接口,支持-20°C ~ 70°C(3G及Wi-Fi模式除外)宽温工作。最高7瓦TDP的低功耗设计可在严苛环境中为物联网及M2M应用提供强大的平台。

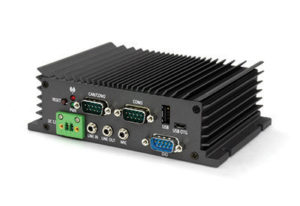

威盛AMOS-820是基于VAB-820主板的一款完整的坚固型系统解决方案。
点击此处下载VAB-820数据資料PDF版,或浏览以下信息:
型号 | VAB-820-QP | VAB-820 |
---|---|---|
处理器 | 1.0GHz NXP i.MX 6QuadPlus Cortex-A9 quad-core SoC | 1.0GHz NXP i.MX 6Quad Cortex-A9 quad-core SoC |
系统内存 | 1GB DDR3 SDRAM onboard | |
板载存储 | 4GB eMMC Flash memory | |
Bootloader | 4MB SPI Flash ROM | |
显卡 | Vivante GC2000+ GPU | Vivante GC2000 GPU |
3 integrated, independent 3D/2D and video graphics processing units Graphics engine supporting OpenGL® ES 2.0, OpenCL and OpenVG™ 1.1 hardware acceleration Supports MPEG-2, VC-1and H.264 video decoding up to 1080p Supports SD encoding | ||
LAN | Micrel KSZ9031RNX Gigabit Ethernet transceiver with RGMII support | |
音频 | NXP SGTL5000 low power stereo codec | |
HDMI | Integrated HDMI 1.4 transmitter | |
USB | SMSC USB2514 USB 2.0 high speed 4-port hub controller | |
扩展 I/O | 1 miniPCIe slot | |

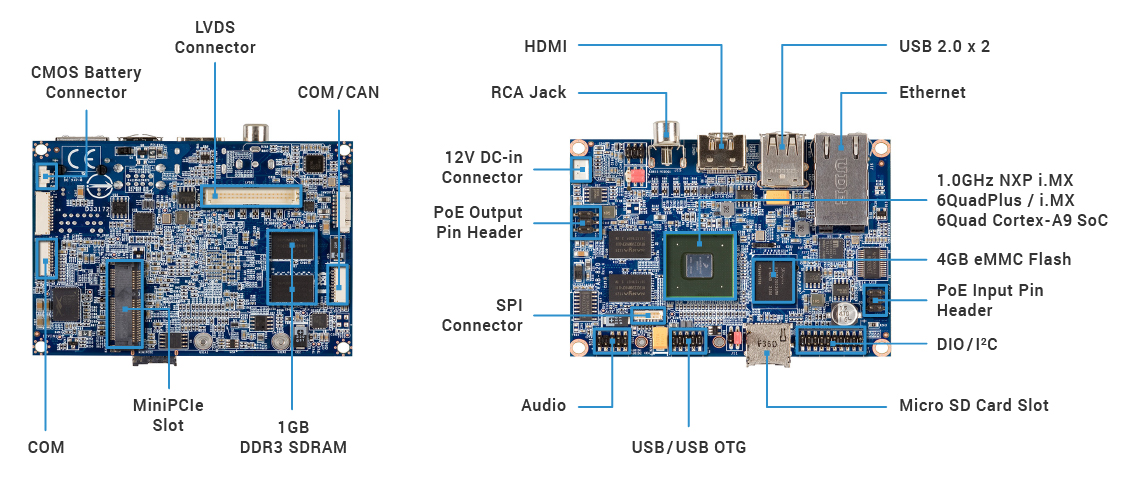

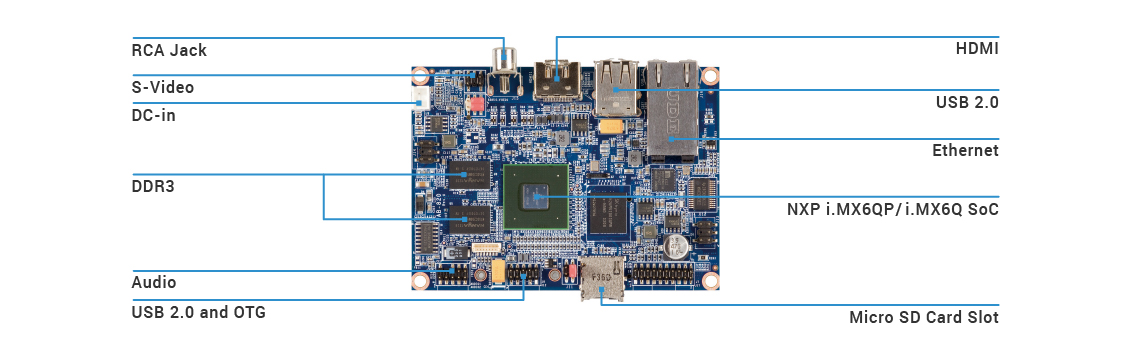

板载 I/O | 1 USB 2.0 host port, and 1 USB2.0 OTG port pin header 1 COM port connector with power supply (supports 8-wire DTE mode) 1 COM/CAN port connector with power supply (supports 1 RS-232 (TX/RX) and 2 FlexCAN TX/RX ports) 1 Dual-channel 18/24-bit LVDS panel connector 1 Miscellaneous pin header for 1 I2C pair, 1 Digital I/O (4 GPI + 4 GPO), system reset button and LEDs for power/WPAN/Wi-Fi/WWAN 1 RTC battery connector 1 MIPI CSI-2 connector (supports 2 data lanes) 1 SPI master pin header (supports 2 SPI slave devices) 1 S-video input pin header 2 Power pin headers (support optional PD power board) 1 Boot Flash select pin header (for SPI or micro SD) 1 Front audio pin header for Line-in, Line-out, Mic-in 1 DC-in connector 1 miniPCIe slot (supports multiple connections and buses including JTAG) | |
前面板 I/O | 1 Micro SD card slot | |
后面板 I/O | 2 USB 2.0 ports 1 HDMI port 1 Composite input RCA jack 1 Gigabit Ethernet port (supports optional IEEE 802.3 at type 2) | |
电子看门狗 | Integrated watch dog timer supports two comparison points. Each comparison point can interrupt ARM core, 2nd comparison point capable of generating external interrupts on WDOG line | |
供电 | 12V DC-in | |
操作系统 | Android 6.0, Linux Kernel 4.1.15 | |
工作温度 | -20°C ~ 70°C (3G & Wi-Fi not included) | |
工作湿度 | 0% ~ 95% (non-condensing) | |
产品尺寸 | Pico-ITX (10cm x 7.2cm, 3.9" x 2.8") |
文件 | 版本 | 日期 |
---|---|---|
用户手册 | v1.21 | 2018-09-10 |
快速入门手册 | v1.01 | 2016-11-07 |
Android | ||
Android 开发指南 for BSP v5.0.6 | v1.01 | 2017-08-11 |
Android 快速入门指南 for EVK v5.0.6 | v1.01 | 2017-08-11 |
Smart ETK 程序设计指南 | v1.00 | 2017-08-11 |
Linux | ||
Linux 开发指南 for BSP v4.1.3 | v1.00 | 2018-02-07 |
Linux 快速入门指南 for EVK v4.1.3 | v1.00 | 2018-02-07 |
软件 | 版本 | 日期 |
---|---|---|
Android | ||
Android 6.0 Board Support Package (BSP) (722.5MB) | v5.0.6 | 2017-08-15 |
Android 6.0 Evaluation Kit (EVK) (479.7MB) | v5.0.6 | 2017-08-15 |
Linux | ||
Linux Board Support Package (BSP) (5.8GB) | v4.1.3 | 2018-03-02 |
Linux Evaluation Kit (EVK) (380.8MB) | v4.1.3 | 2018-03-02 |
重要: 一旦下载该系列软件包,表明您已同意软件许可协议。如您不同意软件协议的任何条款和条件,请不要继续下载该软件。
U-Boot version: 2015.04
Kernel version: 3.14.52
Evaluation image: Android Marshmallow 6.0
Development based on NXP android_M6.0.1_1.0.0-ga (Android 6.0 Marshmallow)
Supports SPI with eMMC as default boot device
Supports HDMI
Supports Dual Display (Clone Mode)
Supports HDMI audio output
Supports AUO LVDS resistive touch panels (through USB interface)
AUO 10.4″ G104XVN01.0 (1024×768)
AUO 7″ G070VW01 (800×480)
Supports S-video and CVBS
Supports COM1 DTE mode, COM2 as debug port
Supports 2 FlexCAN TX/RX
Supports Gigabit Ethernet
Supports Line-in, Line-out, Mic-in
Supports VNT9271 USB Wi-Fi dongle
Supports EMIO-1533 USB Wi-Fi module
Supports EMIO-5531 USB Wi-Fi & BT module
Supports Bluetooth A2DP and SPP profile
Supports EMIO-1541 miniPCIe Wi-Fi module
Supports EMIO-2531 miniPCIe Wi-Fi & BT module
Supports Bluetooth A2DP and SPP profile
Supports Smart ETK v0.0.16: FlexCAN, GPIO, UART, and Watchdog Timer
Supports OTA (Over-the-Air technology)
Supports shutdown option in Quick Settings
Supports Ethernet configuration in Settings
(Bold font highlights the changes in this BSP release.)
U-Boot version: 2015.04
Kernel version: 4.1.15
Evaluation image: OpenEmbedded-core built with Yocto 2.0 Jethro
Development based on NXP fsl-yocto-L4.1.15_1.1.0-ga (Yocto 2.0 Jethro)
Supports SPI with eMMC or Micro SD boot (default)
Supports HDMI and LVDS display
Supports HDMI audio output
Supports AUO LVDS capacitive touch panels (through USB interface)
AUO 10.4” G104XVN01.0 (1024×768)
AUO 7” G070VW01 V0 (800×480)
Supports S-Video and CVBS
Supports COM1 DTE mode, COM2 as debug port
Supports 2 FlexCAN TX/RX
Supports Gigabit Ethernet
Supports Line-in, Line-out, Mic-in
Supports VNT9271 USB Wi-Fi dongle
Supports EMIO-1533 USB Wi-Fi module
Supports EMIO-5531 USB Wi-Fi & BT module
Supports Bluetooth A2DP and SPP profile
Supports EMIO-1541 miniPCIe Wi-Fi module
Supports EMIO-2531 miniPCIe Wi-Fi & BT module
Supports Bluetooth A2DP and SPP profile
Supports Watchdog Timer, GPIO and RTC
BSP v4.1.3 Bug Fixes and Modifications
Changed CPU settings back to NXP default.
Fixed a u-boot bug that was showing incorrect low temperature.
Fixed a kernel bug that caused system boot hangs on HDMI at high temperature.
型号 | SoC | 描述 |
---|---|---|
10GBF10H700A0 | NXP i.MX 6QuadPlus @ 1.0GHz | Pico-ITX board with 1.0GHz NXP i.MX 6QuadPlus Cortex-A9 SoC, 4GB eMMC, 4MB SPI Flash ROM, 1GB DDR3 SDRAM, HDMI, LVDS, 4 USB 2.0, OTG USB 2.0, COM, Gigabit Ethernet, S-video, Micro SD card slot, miniPCIe slot, 2 CAN bus, 12V DC-in 包装清单: VAB-820 board, DC power cable, debug COM cable, audio cable, 2-port USB cable |
10GBF105000A0 | NXP i.MX 6Quad @1.0GHz | Pico-ITX board with 1.0GHz NXP i.MX 6Quad Cortex-A9 quad-core SoC, 4GB eMMC, 4MB SPI Flash ROM, 1GB DDR3 SDRAM, HDMI, LVDS, 4 USB 2.0, OTG USB 2.0, COM, Gigabit Ethernet, miniPCIe, S-video, Micro SD card slot, 2 CAN bus, 12V DC-in 包装清单: VAB-820 board, DC power cable, debug COM cable, audio cable, 2-port USB cable, screw pack for miniPCIe card |
型号 | 描述 |
---|---|
00GO27100BU2B0D0 | VNT9271 IEEE 802.11 b/g/n USB Wi-Fi dongle |
EMIO-1533-00A2 | VNT9271 IEEE 802.11 b/g/n USB Wi-Fi module with assembly kit |
EMIO-5531-00A1 | VAB-820-W IEEE 802.11b/g/n USB Wi-Fi & Bluetooth module with assembly kit and antenna |
EMIO-2531-00A1 | VAB-820-W-M IEEE 802.11b/g/n miniPCIe Wi-Fi & Bluetooth module with assembly kit and antenna |
